B2O3含量对SiO2–B2O3–Al2O3–Na2O系陶瓷结合剂结构与性能的影响

王照 徐三魁 黄威 徐天兵 韩平 闫国进 陈兆奇 吴坦洋

王照, 徐三魁, 黄威, 徐天兵, 韩平, 闫国进, 陈兆奇, 吴坦洋. B2O3含量对SiO2–B2O3–Al2O3–Na2O系陶瓷结合剂结构与性能的影响[J]. 金刚石与磨料磨具工程, 2022, 42(5): 552-559. doi: 10.13394/j.cnki.jgszz.2022.0041
引用本文: 王照, 徐三魁, 黄威, 徐天兵, 韩平, 闫国进, 陈兆奇, 吴坦洋. B2O3含量对SiO2–B2O3–Al2O3–Na2O系陶瓷结合剂结构与性能的影响[J]. 金刚石与磨料磨具工程, 2022, 42(5): 552-559. doi: 10.13394/j.cnki.jgszz.2022.0041
WANG Zhao, XU Sankui, HUANG Wei, XU Tianbing, HAN Ping, YAN Guojin, CHEN Zhaoqi, WU Tanyang. Effect of B2O3 content on the structure and properties of SiO2–B2O3–Al2O3–Na2O system ceramic binder[J]. Diamond & Abrasives Engineering, 2022, 42(5): 552-559. doi: 10.13394/j.cnki.jgszz.2022.0041
Citation: WANG Zhao, XU Sankui, HUANG Wei, XU Tianbing, HAN Ping, YAN Guojin, CHEN Zhaoqi, WU Tanyang. Effect of B2O3 content on the structure and properties of SiO2–B2O3–Al2O3–Na2O system ceramic binder[J]. Diamond & Abrasives Engineering, 2022, 42(5): 552-559. doi: 10.13394/j.cnki.jgszz.2022.0041

B2O3含量对SiO2–B2O3–Al2O3–Na2O系陶瓷结合剂结构与性能的影响

doi: 10.13394/j.cnki.jgszz.2022.0041
基金项目: 河南省重点科技攻关项目(212102210463);连云港市花果山英才计划资助项目(2021102085168)。
详细信息
    通讯作者:

    徐三魁,男,1967年生,教授、硕士生导师。主要研究方向:超细功能材料。E-mail:sankui_xu@haut.edu.cn

  • 中图分类号: TG74; TH145

Effect of B2O3 content on the structure and properties of SiO2–B2O3–Al2O3–Na2O system ceramic binder

  • 摘要: 制备不同B2O3含量的SiO2–B2O3–Al2O3–Na2O系玻璃试样和陶瓷结合剂试样,利用电子多功能实验机、扫描电镜、显微硬度仪、平面流淌法、热膨胀系数测试仪等分别测试不同玻璃试样的密度和显微硬度,陶瓷结合剂试样的抗折强度、微观形貌和热膨胀系数等,并用X射线衍射仪、傅里叶变换红外光谱仪对陶瓷结合剂的结构和成分变化进行分析。结果表明:将B2O3引入陶瓷结合剂中可有效降低其烧结温度,提高其热稳定性并调节其热膨胀系数等。在陶瓷结合剂中加入摩尔分数为15%的B2O3时,其样条抗折强度最高为78.11 MPa,密度和硬度最高分别为2.45 g/cm3和856 MPa,且该陶瓷结合剂的热膨胀系数与金刚石最匹配。X射线衍射分析结果表明陶瓷结合剂是典型的玻璃相结构,且对磨料有良好的包覆效果。

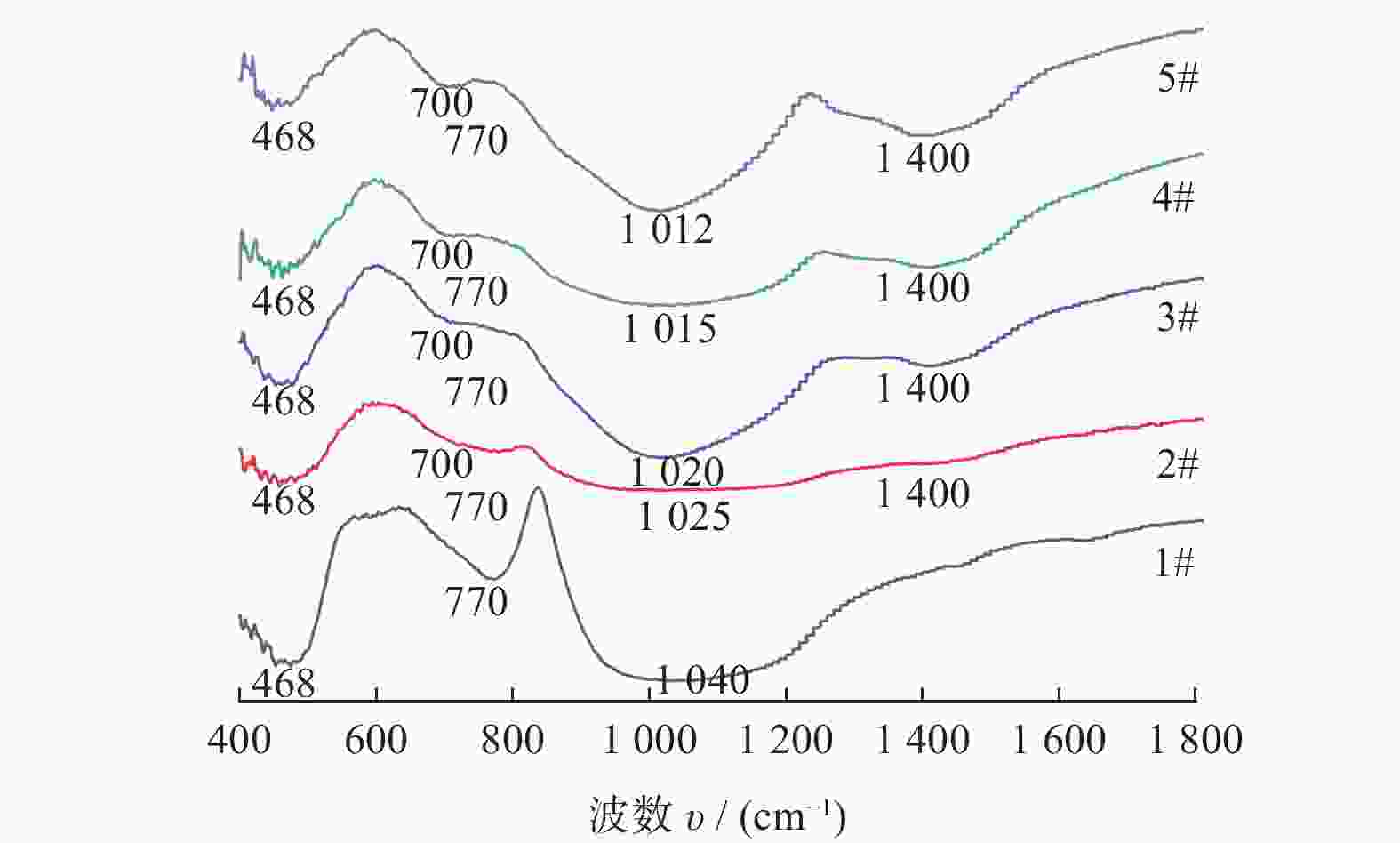

  • 图  1  不同B2O3含量陶瓷结合剂的红外吸收光谱

    Figure  1.  Infrared absorption spectra of ceramic binders with different B2O3 contents

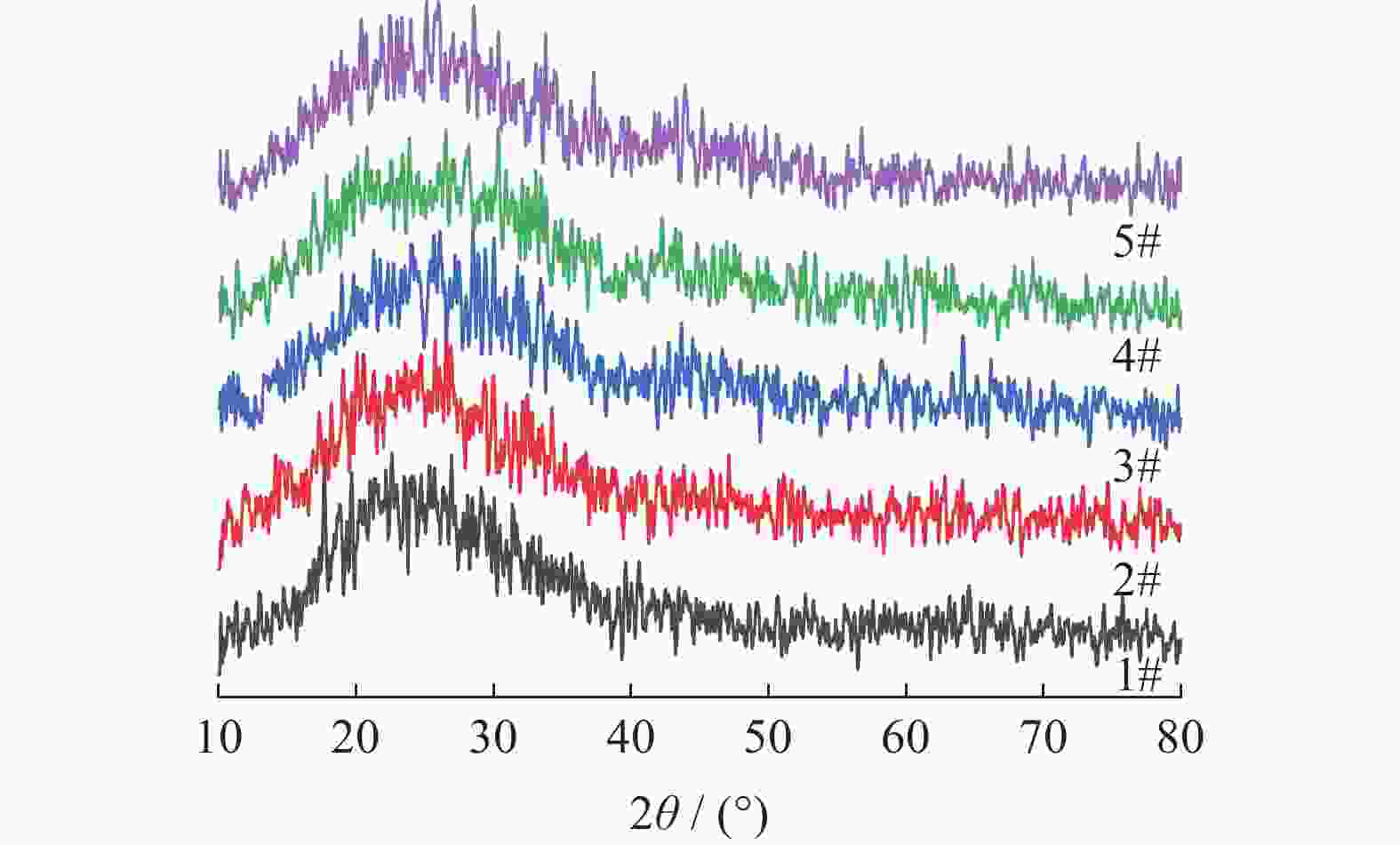

    图  2  5组陶瓷结合剂试样的XRD图谱

    Figure  2.  XRD patterns of 5 groups of ceramic binder samples

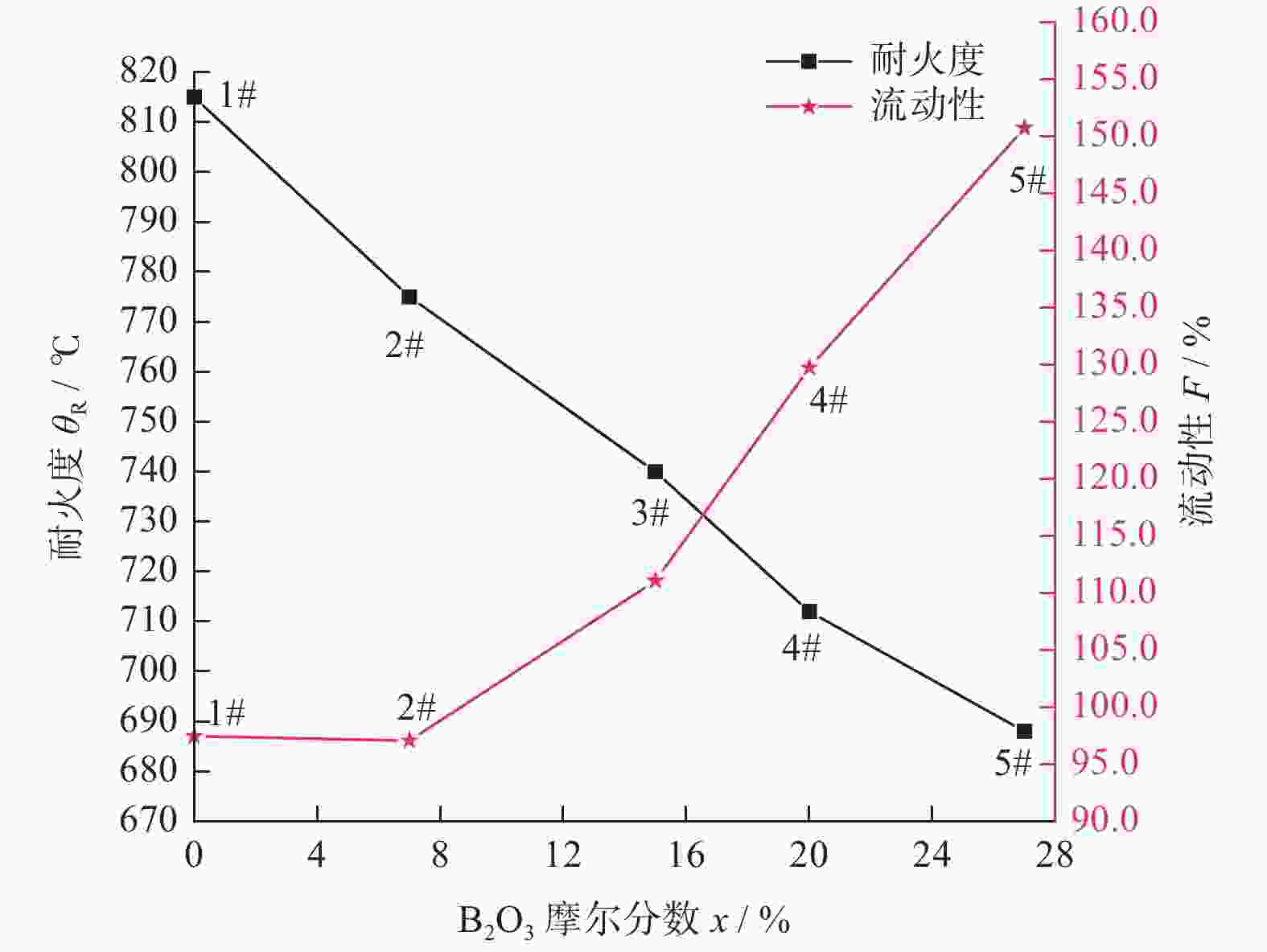

    图  3  不同B2O3摩尔分数的陶瓷结合剂的耐火度和流动性

    Figure  3.  Refractoriness and fluidity of ceramic binder with different B2O3 mole fractions

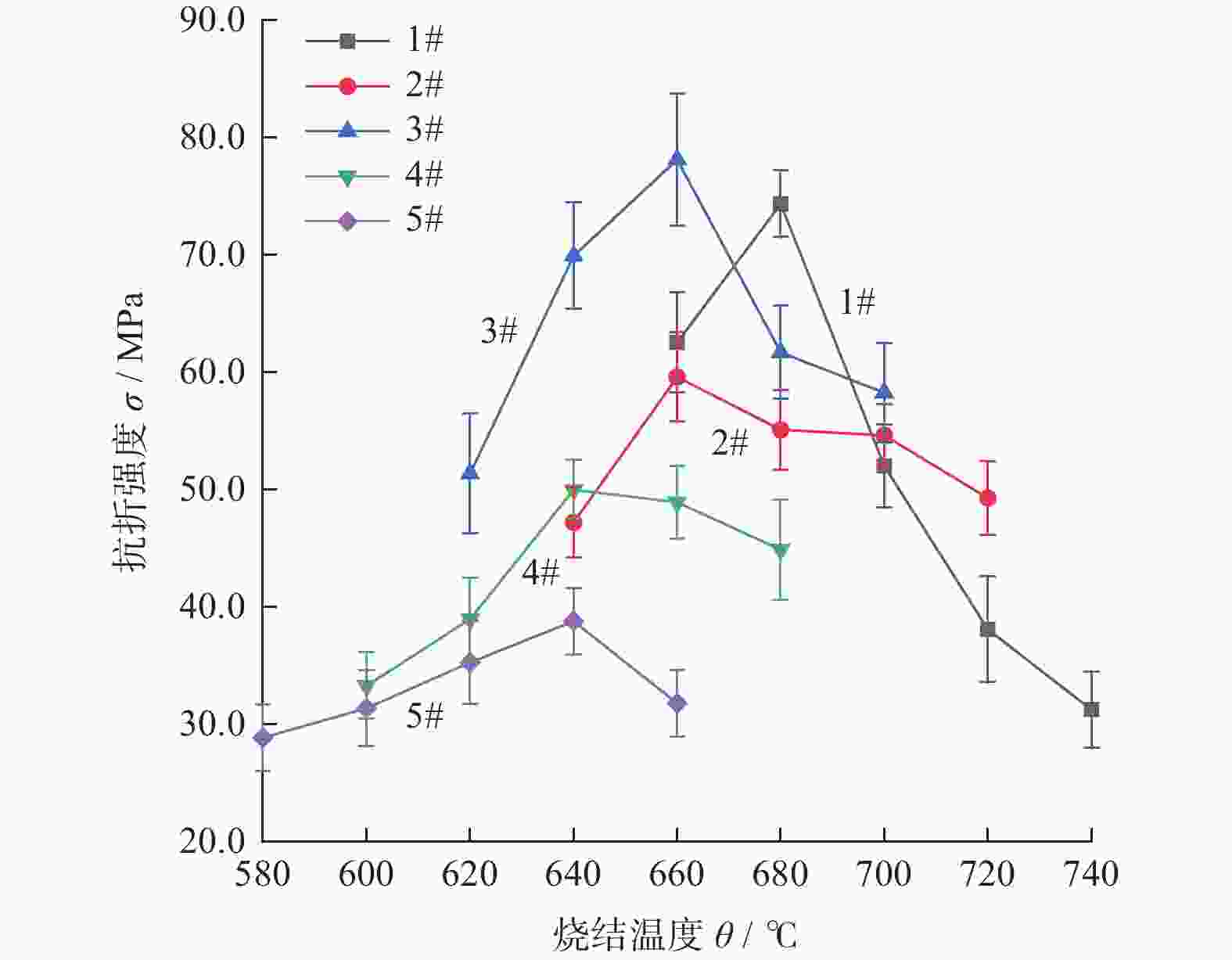

    图  4  5组陶瓷结合剂在不同烧结温度下的抗折强度变化

    Figure  4.  Changes of bending strength of five groups of ceramic binders at different sintering temperatures

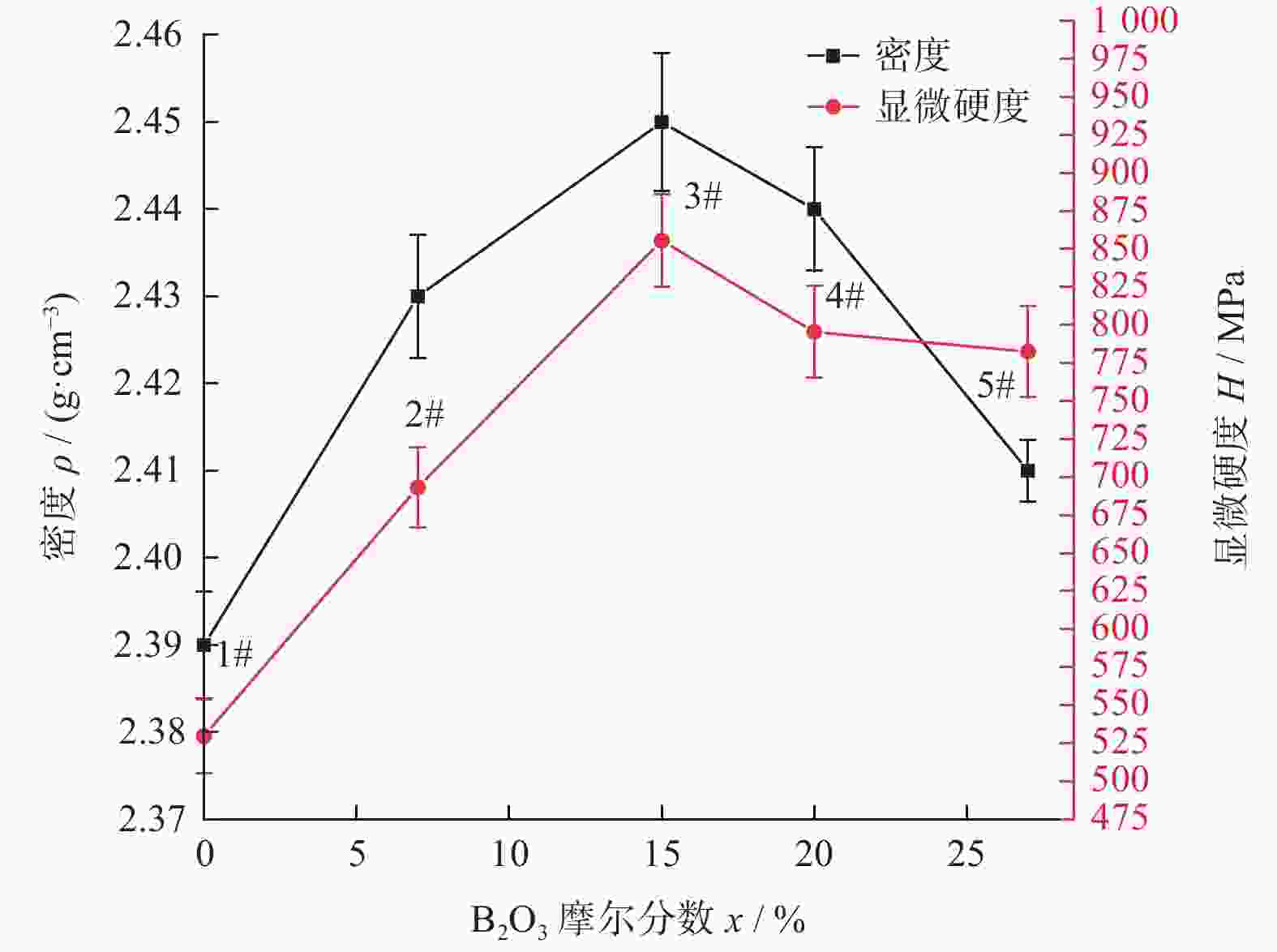

    图  5  不同B2O3摩尔分数的玻璃的密度和显微硬度

    Figure  5.  Density and microhardness of glass with different B2O3 mole fractions

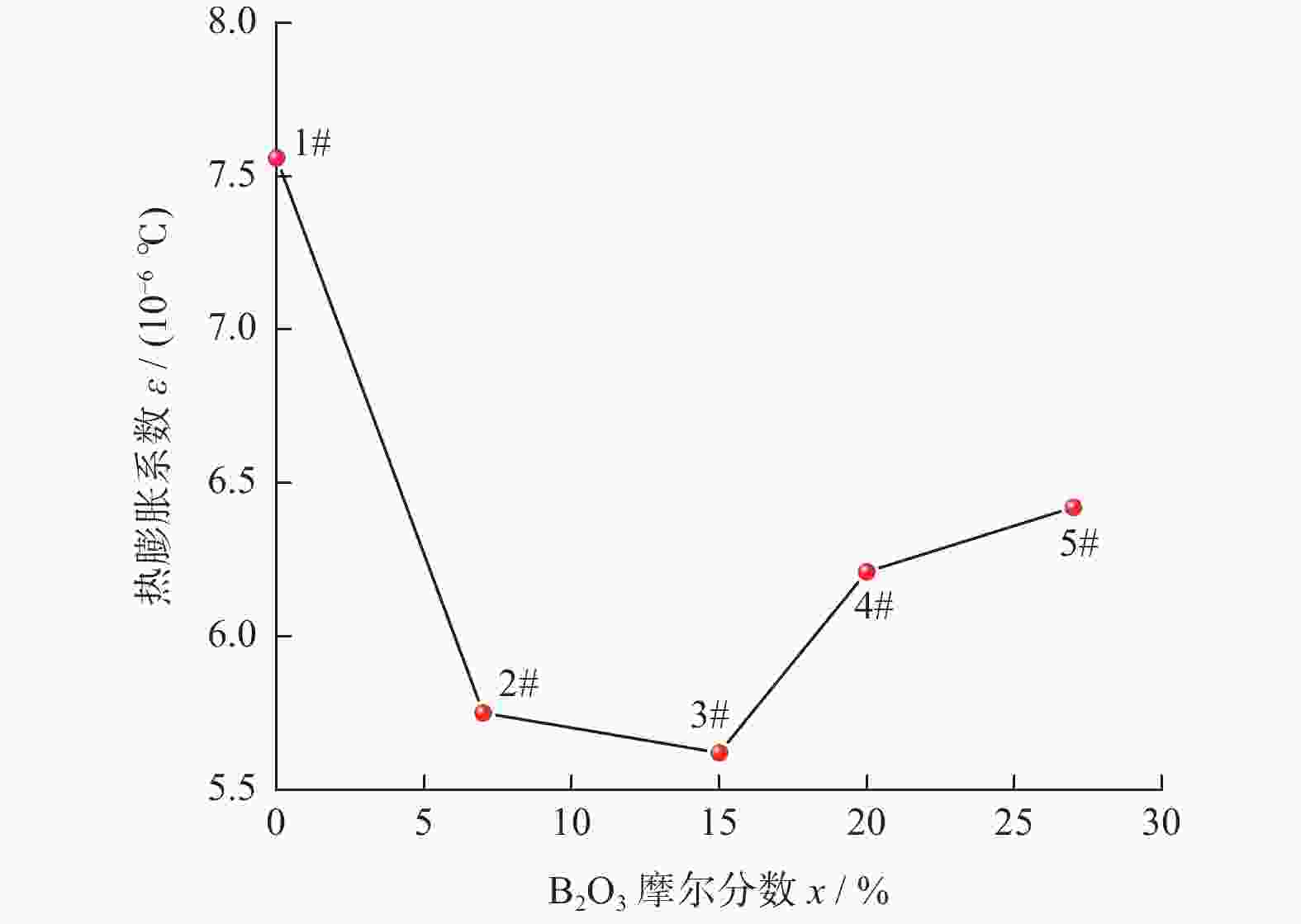

    图  6  不同B2O3摩尔分数的陶瓷结合剂的热膨胀系数

    Figure  6.  Thermal expansion coefficients of ceramic binders with different B2O3 mole fractions

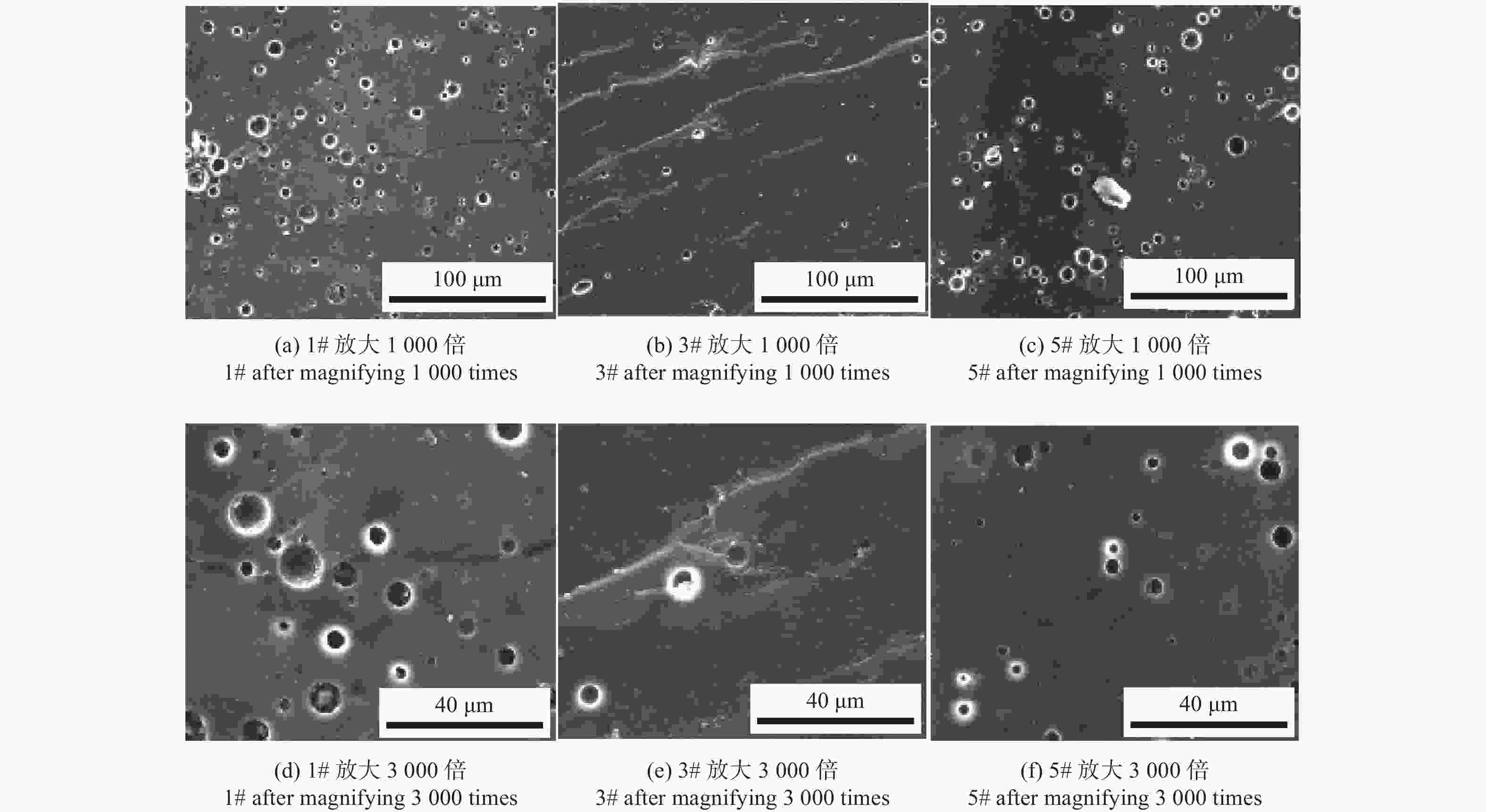

    图  7  陶瓷结合剂烧结试样断口扫描形貌

    Figure  7.  SEM fracture morphology of sintered samples of ceramic binders

    表  1  陶瓷结合剂化学组成

    Table  1.   Chemical compositions of ceramic binder

    试样摩尔分数 x / %
    SiO2B2O3Al2O3Na2O
    1#750520
    2#687520
    3#6015520
    4#5520520
    5#4827520
    下载: 导出CSV

    表  2  陶瓷结合剂原料质量分数

    Table  2.   Mass fractions of ceramic binder raw materials

    试样质量分数 ω / %
    SiO2H3BO3Al2O3Na2CO3
    1#63.1507.1429.71
    2#53.9011.426.7227.96
    3#44.5722.936.3026.20
    4#39.3029.426.0725.21
    5#32.5837.725.7623.94
    下载: 导出CSV

    表  3  硼硅酸盐玻璃常见的红外吸收光谱特征振动[15]

    Table  3.   Characteristic vibrations of borosilicate glass infrared absorption spectra[15]

    波数 υ / (cm−1)对应的特征振动归属
    460Si—O—Si弯曲振动峰
    700[BO3]弯曲振动峰
    770O—Si—O伸缩振动峰
    940~1 080[BO4]反对称伸缩振动峰
    1 020~1 060Si—O—Si反对称伸缩振动峰
    1 400[BO3]反对称伸缩振动峰
    下载: 导出CSV
  • [1] 曾俊, 瓦崇龙. 陶瓷结合剂金刚石砂轮在加工PCD刀具中的优越性 [J]. 超硬材料工程,2005(4):18-20. doi: 10.3969/j.issn.1673-1433.2005.04.005

    ZENG Jun, WA Chonglong. Advantages of ceramic binder diamond grinding wheel in machining PCD tools [J]. Superhard Material Engineering,2005(4):18-20. doi: 10.3969/j.issn.1673-1433.2005.04.005
    [2] COOK M W, BOSSOM P K. Trends and recent developments in the material manufacture and cutting tool application of polycrystalline diamond and polycrystalline cubic boron nitride [J]. International Journal of Refractory Metals and Hard Materials,2000,18(2/3):147-152. doi: 10.1016/S0263-4368(00)00015-9
    [3] 栾时勋. 金刚石砂轮用ZnO–B2O3–SiO2微晶玻璃结合剂的制备与应用研究 [D]. 南京: 南京航空航天大学, 2018.

    LUAN Shixun. Preparation and application of ZnO–B2O3–SiO2 glass ceramic binder for diamond grinding wheel [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2018.
    [4] ZHANG X H, WANG Y H, ZANG J B, et al. Improving oxidation resistance of diamond by adding silicon into diamond−borosilicate glass composites [J]. International Journal of Refractory Metals and Hard Materials,2011,29(4):495-498. doi: 10.1016/j.ijrmhm.2011.02.009
    [5] JACKSON M J, BARLOW N, MILLS B. The effect of bond composition on the strength of partially-bonded vitrified ceramic abrasives [J]. Journal of Materials Science Letters,1994,13(1):1287-1289.
    [6] 于天彪, 王学智, 孙雪, 等. 高性能CBN砂轮陶瓷结合剂研究进展 [J]. 金刚石与磨料磨具工程,2015,35(2):1-8. doi: 10.13394/j.cnki.jgszz.2015.2.0001

    YU Tianbiao, WANG Xuezhi, SUN Xue, et al. Research progress of high performance CBN grinding wheel ceramic binder [J]. Diamond & Abrasives Engineering,2015,35(2):1-8. doi: 10.13394/j.cnki.jgszz.2015.2.0001
    [7] KARABULUT M, YUCE B, BOZDOGAN O, et al. Effect of boron addition on the structure and properties of iron phosphate glasses [J]. Journal of Non-Crystalline Solids,2011,357(5):1455-1462. doi: 10.1016/j.jnoncrysol.2010.11.023
    [8] 姜蓉蓉. 金刚石磨具用低温陶瓷结合剂的研究 [D]. 天津: 天津大学, 2014.

    JIANG Rongrong. Study on low temperature ceramic binder for diamond abrasive tools [D]. Tianjin: Tianjin University, 2014.
    [9] JACKSON M J, MILLS B. Materials selection applied to vitrified alumina & CBN grinding wheels [J]. Journal of Materials Processing Technology,2000(108):114-124.
    [10] 张小福, 卢安贤, 张红霞. 高温下微晶玻璃结合剂对金刚石磨料浸润性研究 [J]. 金刚石与磨料磨具工程,2007(1):44-46, 59. doi: 10.3969/j.issn.1006-852X.2007.01.011

    ZHANG Xiaofu, LU Anxian, ZHANG Hongxia. Study on the wettability of glass ceramic binder to diamond abrasive at high temperature [J]. Diamond & Abrasives Engineering,2007(1):44-46, 59. doi: 10.3969/j.issn.1006-852X.2007.01.011
    [11] 何峰, 房玉, 刘佳, 等. B2O3对硼硅酸盐玻璃结构和性能的影响 [J]. 武汉理工大学学报,2012,34(2):1-4. doi: 10.3963/j.issn.1671-4431.2012.02.001

    HE Feng, FANG Yu, LIU Jia, et al. Effect of B2O3 on the structure and properties of borosilicate glass [J]. Journal of Wuhan University of Technology,2012,34(2):1-4. doi: 10.3963/j.issn.1671-4431.2012.02.001
    [12] 张盼, 张芩宇, 姜宏, 等. B2O3对低膨胀硼硅酸盐玻璃结构及性能影响的研究 [J]. 硅酸盐通报, 2021, 40(5): 1685-1691, 1697.

    ZHANG Pan, ZHANG Cenyu, JIANG Hong, et al. Study on the effect of B2O3 on the structure and properties of low expansion borosilicate glass [J]. Silicate Bulletin, 2021, 40(5): 1685-1691, 1697.
    [13] 胡永强, 郑昆鹏, 刘新建, 等. 用于SIC晶片的减薄多孔陶瓷复合结合剂、金刚石刀头、砂轮及其制造方法: 202011231728.7 [P]. 2021-11-09.

    HU Yongqiang, ZHENG Kunpeng, LIU Xinjian, et al. Thinning porous ceramic composite binder for SiC wafer, diamond cutter head, grinding wheel and manufacturing method: 202011231728.7 [P]. 2021-11-09.
    [14] 刘宏伟, 吕升东, 刘星星, 等. 一种控制陶瓷结合剂熔制过程中硼挥发的方法: 201810967519.5 [P]. 2018-12-28.

    LIU Hongwei, LYU Shengdong, LIU Xingxing, et al. A method for controlling boron volatilization in the melting process of ceramic binder: 201810967519.5 [P]. 2018-12-28.
    [15] 万军鹏. 浮法硼硅酸盐平板玻璃组成、结构与性能的研究 [D]. 武汉: 武汉理工大学, 2008.

    WAN Junpeng. Study on composition, structure and properties of float borosilicate flat glass [D]. Wuhan: Wuhan University of Technology, 2008.
    [16] 赵仕敬, 王海龙, 李剑, 等. Na2O含量对金刚石砂轮用Na2O–SiO2–Al2O3–B2O3系陶瓷结合剂性能的影响 [J]. 机械工程材料,2018,42(4):1-6,39. doi: 10.11973/jxgccl201804001

    ZHAO Shijing, WANG Hailong, LI Jian, et al. Effect of Na2O content on the properties of Na2O–SiO2–Al2O3–B2O3 ceramic binder for diamond grinding wheel [J]. Mechanical Engineering Materials,2018,42(4):1-6,39. doi: 10.11973/jxgccl201804001
    [17] 侯永改. 陶瓷磨具制造 [M]. 北京: 中国轻工业出版社, 2009.

    HOU Yonggai. Manufacturing of ceramic abrasive tools [M]. Beijing: China Light Industry Press, 2009.
    [18] JACKSON M J, MILLS B. Thermal expansion of alumino-alkalisilicate and aluminoborosilicate glasses—Comparison of empirical models [J]. Journal of Materials Science Letters,1997(16):1264-1266.
    [19] 刘世权, 许淑惠, 袁怡松, 等. 玻璃粉末的烧结 [J]. 玻璃与搪瓷,1995(5):34-38, 23.

    LIU Shiquan, XU Shuhui, YUAN Yisong, et al. Sintering of glass powder [J]. Glass & Enamel,1995(5):34-38, 23.
