狭窄空间薄壁件机器人砂带磨抛振动抑制方法

李伟刚; 魏锦辉; 王阳; 赵吉宾; 李论; 朱光

doi:10.13394/j.cnki.jgszz.2024.0119

狭窄空间薄壁件机器人砂带磨抛振动抑制方法

doi: 10.13394/j.cnki.jgszz.2024.0119

李伟刚^{1, 2},
魏锦辉^1, ,,
王阳¹,
赵吉宾¹,
李论¹,
朱光^1, ,

1.
中国科学院沈阳自动化研究所, 沈阳 110016
2.
辽宁科技大学机械工程与自动化学院, 辽宁鞍山 114051

基金项目: 辽宁省自然科学基金（2023-MS-034）；国家资助博士后研究人员计划（GZC20232882）；中国博士后面上科学基金（2023M743703）。

详细信息

通讯作者:
魏锦辉，男，1999年生，助理工程师、机械硕士。主要研究方向：机器人制造与工艺数字化。E-mail：jinhui202507@163.com

朱光，男，1991年生，副研究员、工学博士。主要研究方向：机器人制造与工艺数字化。E-mail：gzhusdu@outlook.com

中图分类号: TH161;TG580
计量
- 文章访问数: 28
- HTML全文浏览量: 16
- PDF下载量: 3
- 被引次数: 0
出版历程
- 收稿日期: 2024-07-24
- 修回日期: 2024-08-26
- 录用日期: 2024-10-20
- 刊出日期: 2025-08-20

Vibration suppression method for robot abrasive belt polishing of narrow space parts

LI Weigang^{1, 2},
WEI Jinhui^{1
, ,},
WANG Yang¹,
ZHAO Jibin¹,
LI Lun¹,
ZHU Guang^{1
, ,}

1.
Shenyang Institute of Automation, Chinese Academy of Sciences, Shenyang 110016, China
2.
School of Mechanical Engineering, University of Science and Technology Liaoning, Anshan 114051, Liaoning, China

摘要

摘要: 提出一种航空狭窄空间薄壁件机器人砂带磨抛振动抑制方法，以提高加工振动稳定性以及加工工件的表面质量。首先，通过建立航空薄壁件机器人磨抛动力学模型，分析影响振动稳定性的关键工艺参数；其次，通过增加阻尼的方式对传统砂带机进行改进，采用被动振动控制的方法对机器人砂带磨抛过程中的振动进行抑制；最后，设计正交试验进行磨抛参数优化，并对优化后砂带机的抑振效果进行验证。通过对实验采集的振动信号进行分析可知，优化后的抑振砂带机相较于传统砂带机振幅降低约38.8%，其加工后的叶轮叶片表面粗糙度R_a降至0.4 μm以下。实验结果表明：抑振砂带机可达性良好，且在加工薄壁件时能显著抑制机器人砂带磨抛过程中的振动；采用抑振砂带机磨抛时，适当降低砂带线速度和进给速度、采用接口较软的砂带可以进一步抑制磨抛过程中的振动。
- 机器人砂带磨抛 /
- 振动抑制 /
- 薄壁件 /
- 参数优化 /
- 整体叶轮
Abstract: Objectives With the rapid development of the aviation industry, the surface quality requirements for critical aero-engine components such as integrally bladed disks and integrally bladed rotors have increased. These components have narrow blade passages and poor accessibility, making traditional grinding tools prone to interference. Moreover, the weak stiffness of thin-walled parts and the grinding system can cause severe vibrations during robotic grinding, leading to surface defects and irreversible damage, thus limiting processing quality. This study proposes a vibration suppression method for thin-walled parts in confined spaces to reduce grinding vibrations and improve surface quality and stability. Methods A combined approach of theoretical modeling, tool optimization, and experimental validation is used. First, a dynamic model of robotic grinding for thin-walled parts is established, considering both flutter and forced vibrations, to identify key process parameters affecting vibration stability. A passive vibration control method is then applied by adding a spring damper to the traditional belt grinder to increase system damping and by downsizing the tool for better accessibility. Finally, orthogonal experiments are designed to optimize key process parameters and validate the vibration suppression effect of the optimized belt grinder. Results The dynamic model indicates that contact force, belt speed, feed rate, and system damping significantly affect vibration stability. Analysis of the forced vibration model shows that damping effectively reduces vibration amplitude near resonance frequencies. Experimental vibration signals shows that the optimized belt grinder reduces vibration amplitude by approximately 38.8% compared to the traditional one. Mean analysis of vibration experiments reveals that belt speed and belt joint stiffness negatively correlate with vibration stability, while contact force and feed rate show a decreasing-increasing trend. Range analysis indicates that belt speed and feed rate have the greatest impact on vibration stability, suggesting these parameters should be closely controlled during grinding. After grinding with the optimized belt grinder, the blade surface is smooth and free of vibration marks, with surface roughness R_a reduced to below 0.4 μm, meeting technical requirements. Conclusions Passive vibration control and parameter optimization are used to suppress vibrations during robotic grinding of thin-walled parts. The vibration-suppressing belt grinder, with increased damping and a downsized design, effectively reduces grinding vibrations, enabling interference-free grinding in confined spaces and achieving high surface quality. Orthogonal experiments shows that feed rate and belt speed significantly affect vibration stability. Reducing belt speed and feed rate and using softer belt joints can further suppress vibrations during grinding.
- robot abrasive belt polishing /
- vibration suppression /
- thin-walled workpieces /
- parameter optimization /
- integral impeller

HTML全文

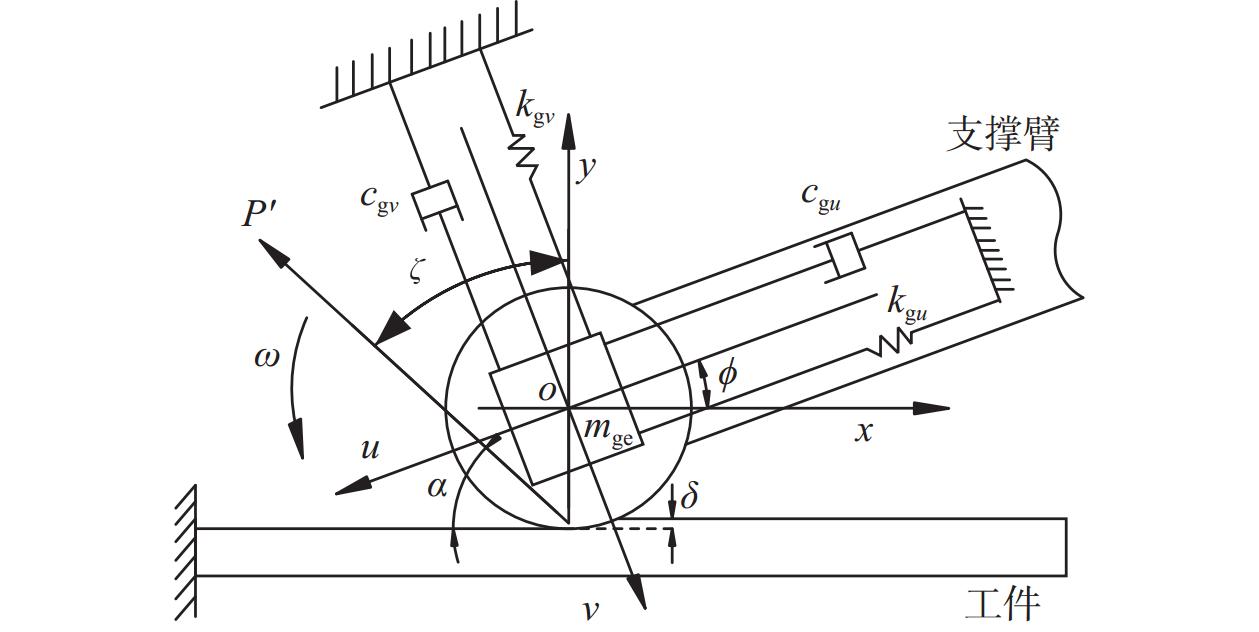

图 1 磨抛系统简化模型^[15]

Figure 1. Simplified model of grinding and polishing system ^[15]

下载: 全尺寸图片幻灯片

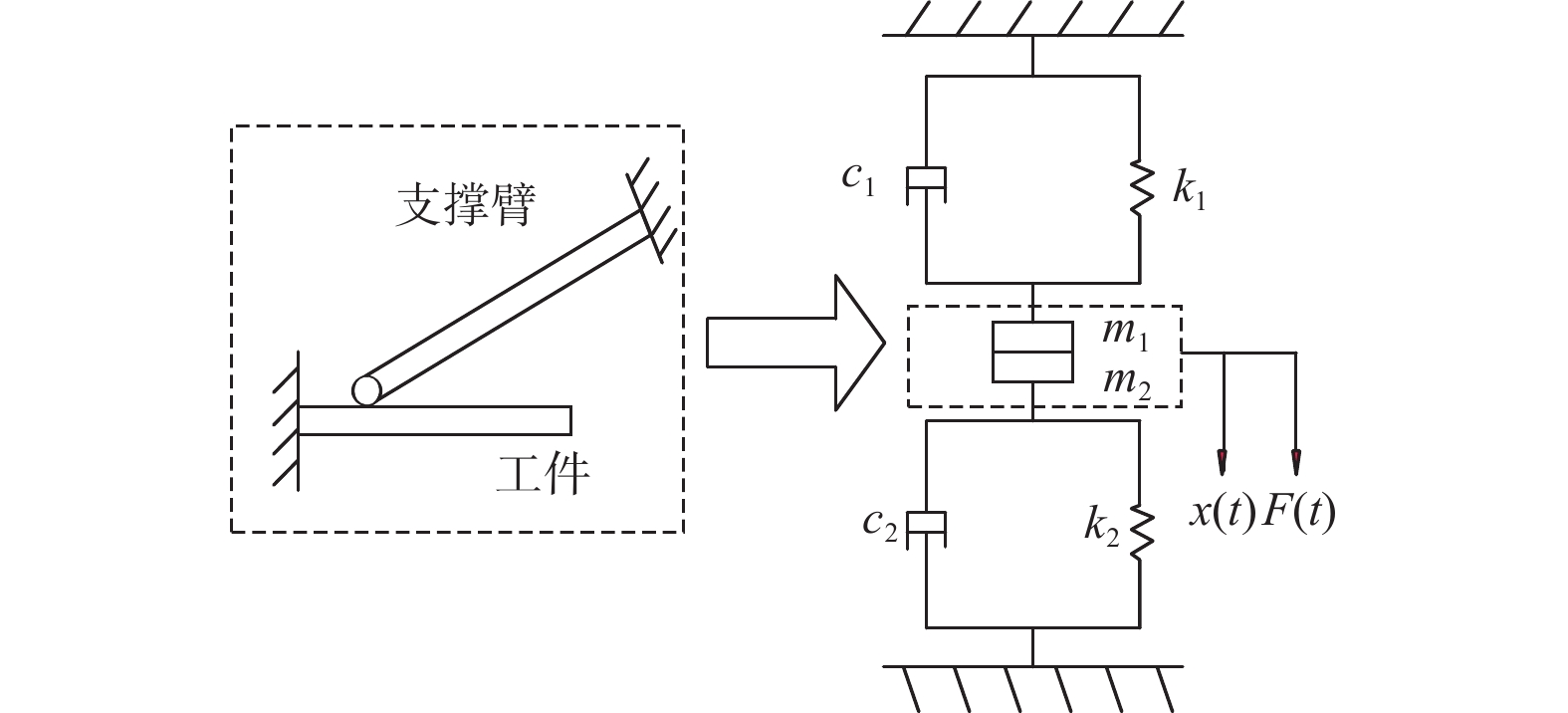

图 2 磨抛系统单自由度振动模型

Figure 2. Single degree of freedom vibration model of grinding and polishing system

下载: 全尺寸图片幻灯片

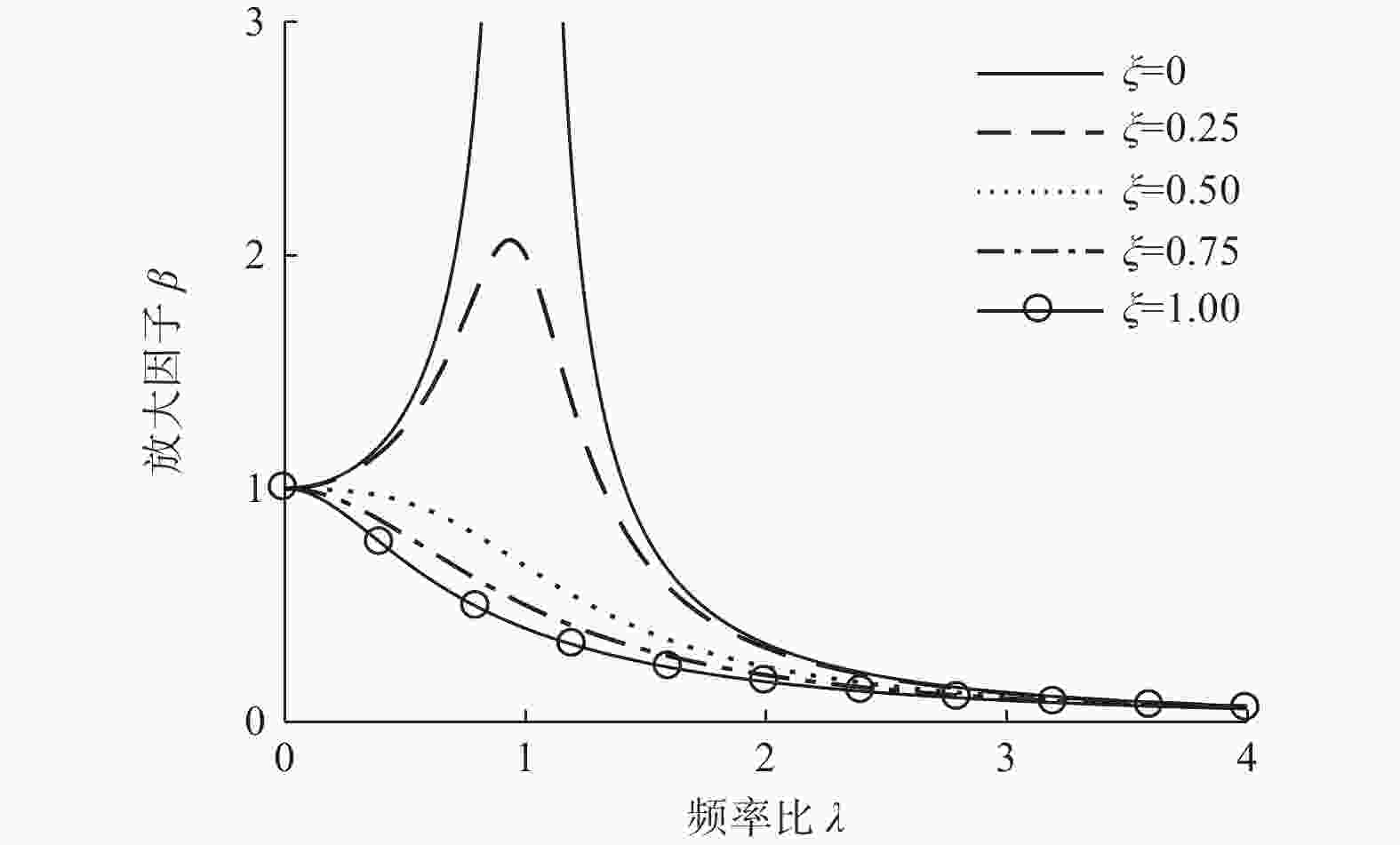

图 3 不同阻尼比和频率比下的放大因子

Figure 3. Amplification factors for different damping ratios and frequency ratios

下载: 全尺寸图片幻灯片

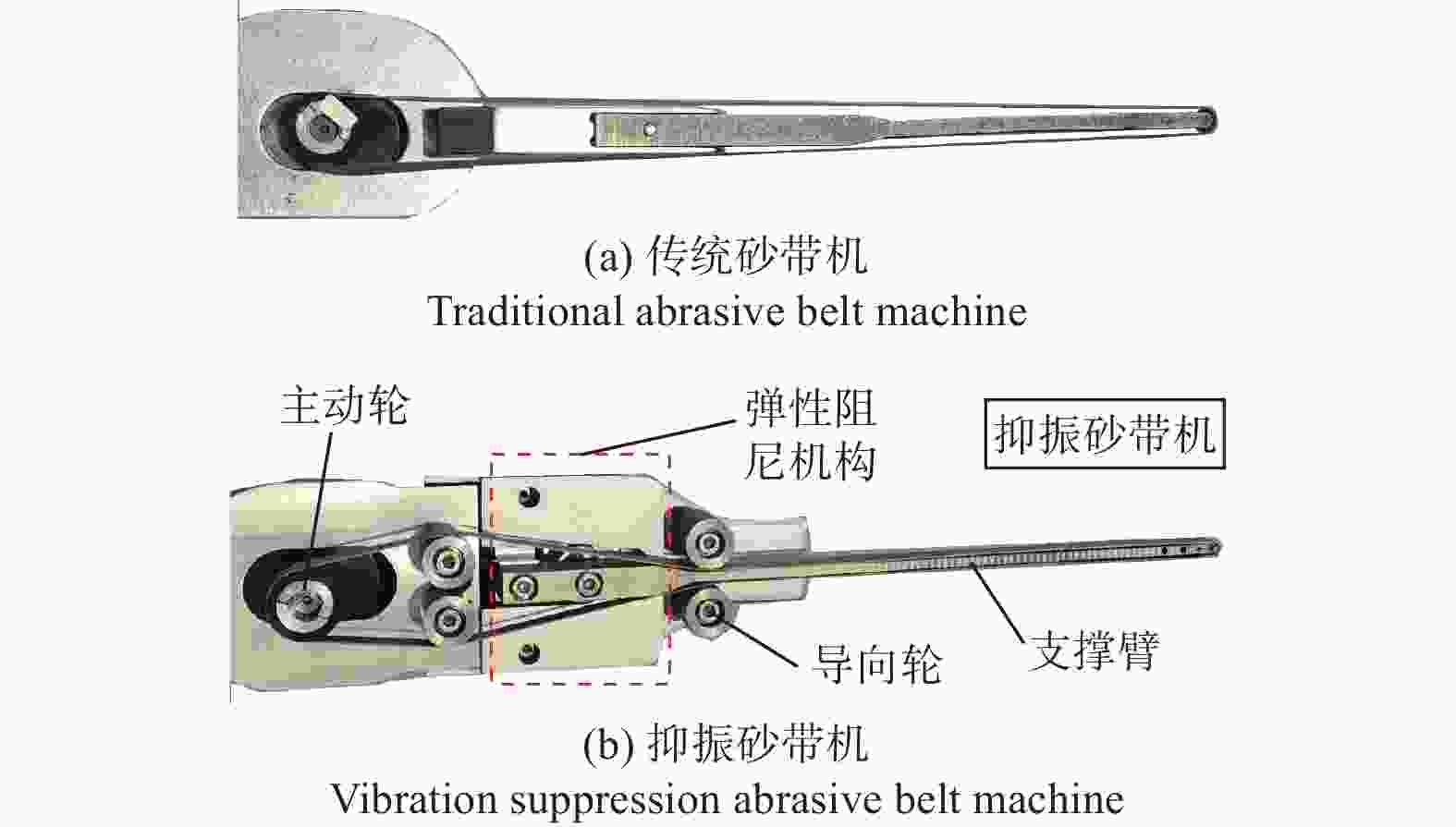

图 4 砂带机实物图

Figure 4. Physical picture of abrasive belt machine

下载: 全尺寸图片幻灯片

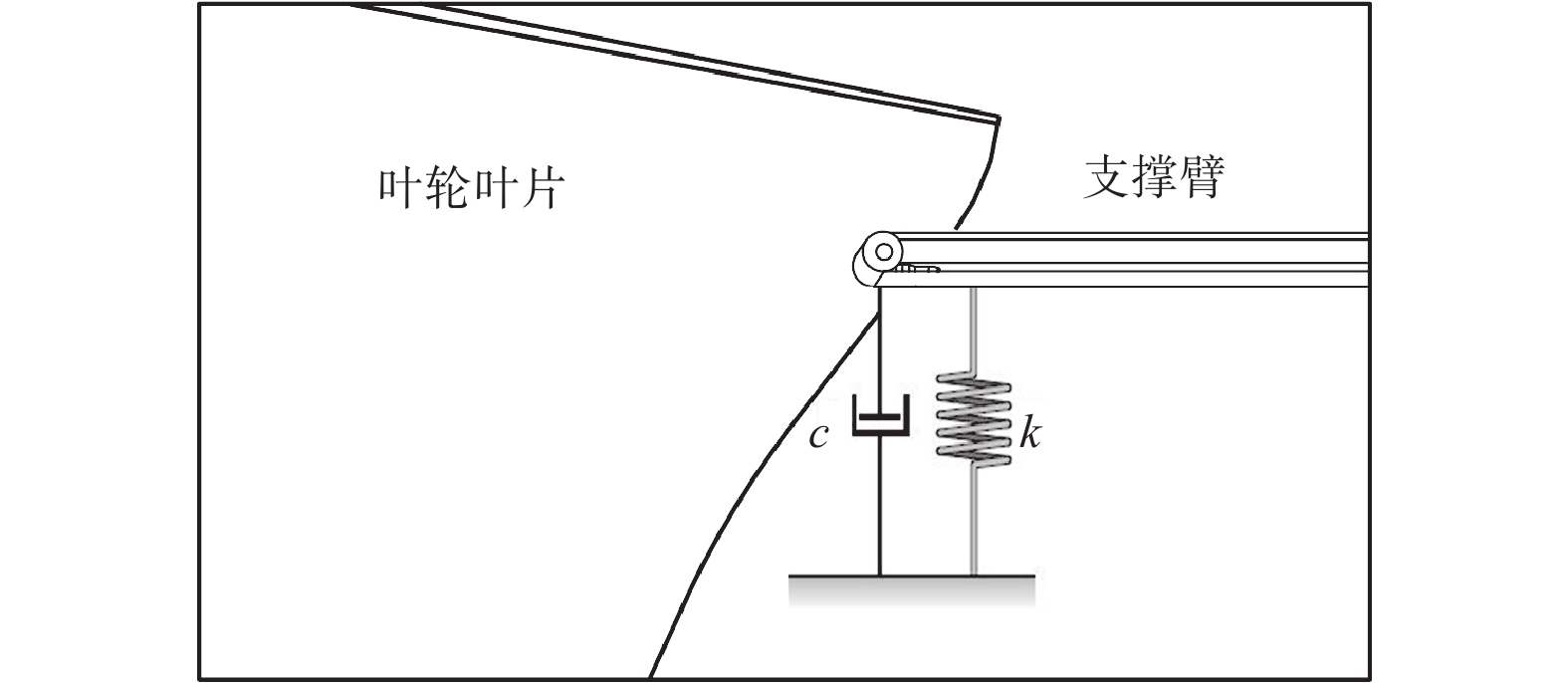

图 5 抑振砂带机工作原理

Figure 5. Working principle of vibration suppression abrasive belt machine

下载: 全尺寸图片幻灯片

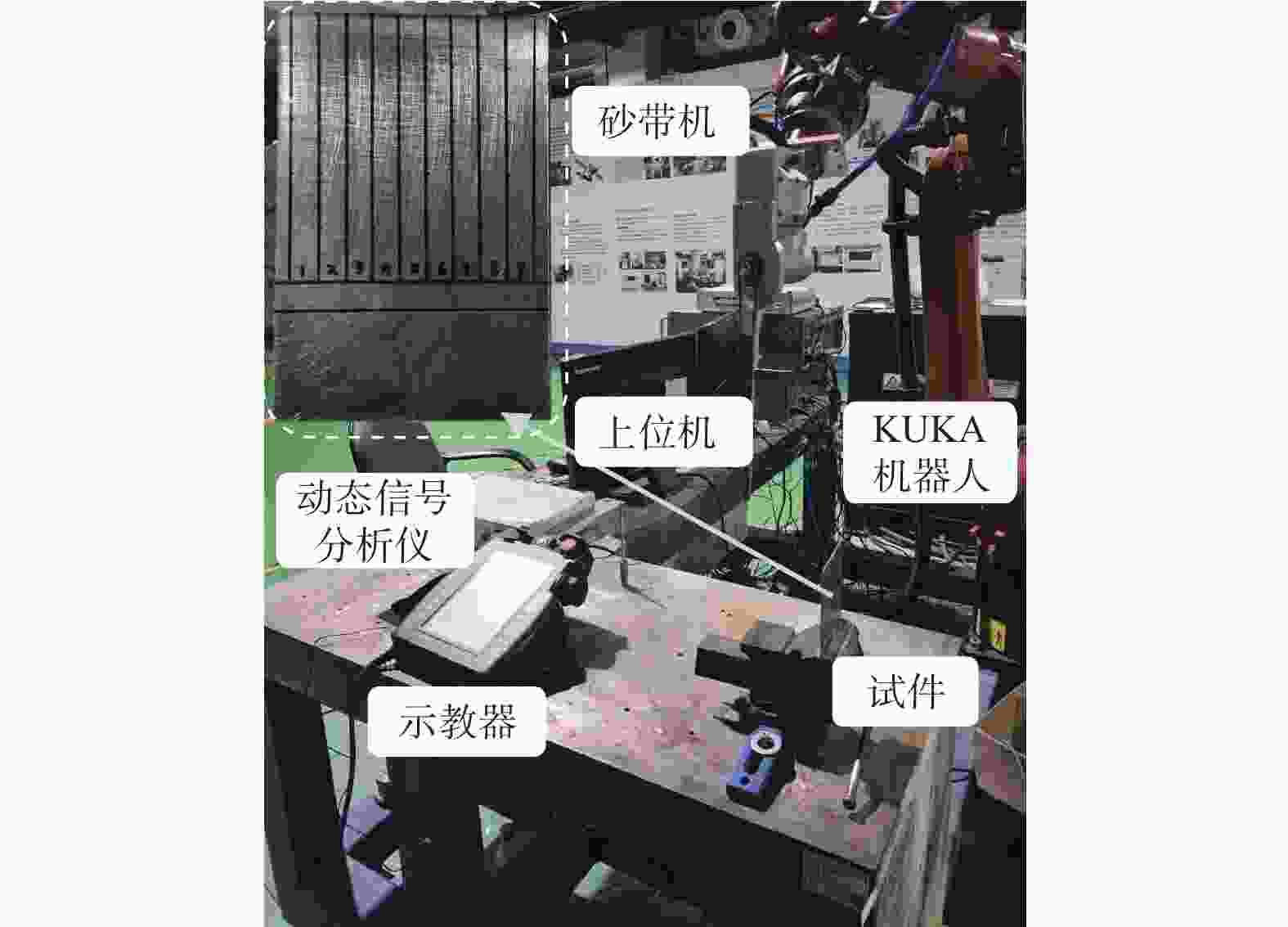

图 6 振动测试实验平台

Figure 6. Vibration testing experimental platform

下载: 全尺寸图片幻灯片

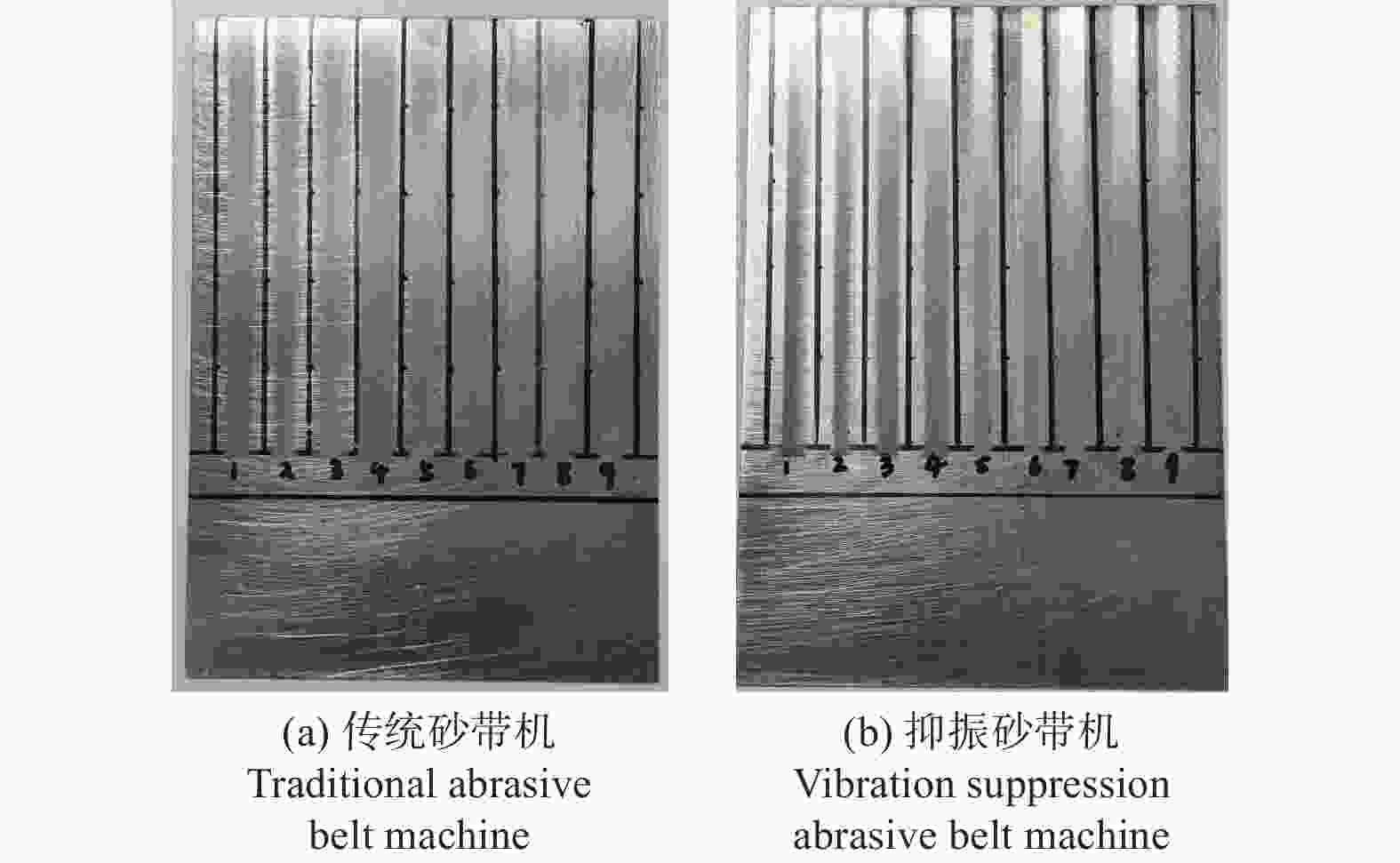

图 7 不同砂带机磨抛后试件

Figure 7. Workpieces processed by different abrasive belt grinding systems

下载: 全尺寸图片幻灯片

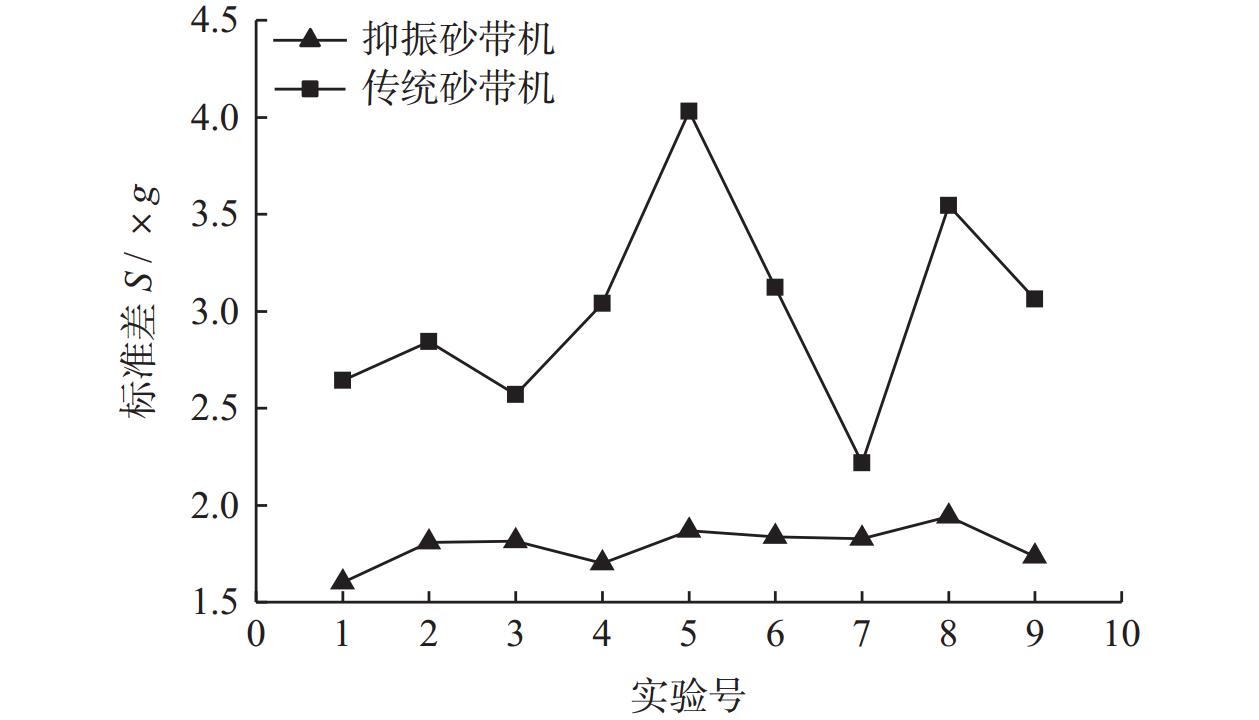

图 8 正交试验标准差分析

Figure 8. Analysis of standard deviation in orthogonal experiment

下载: 全尺寸图片幻灯片

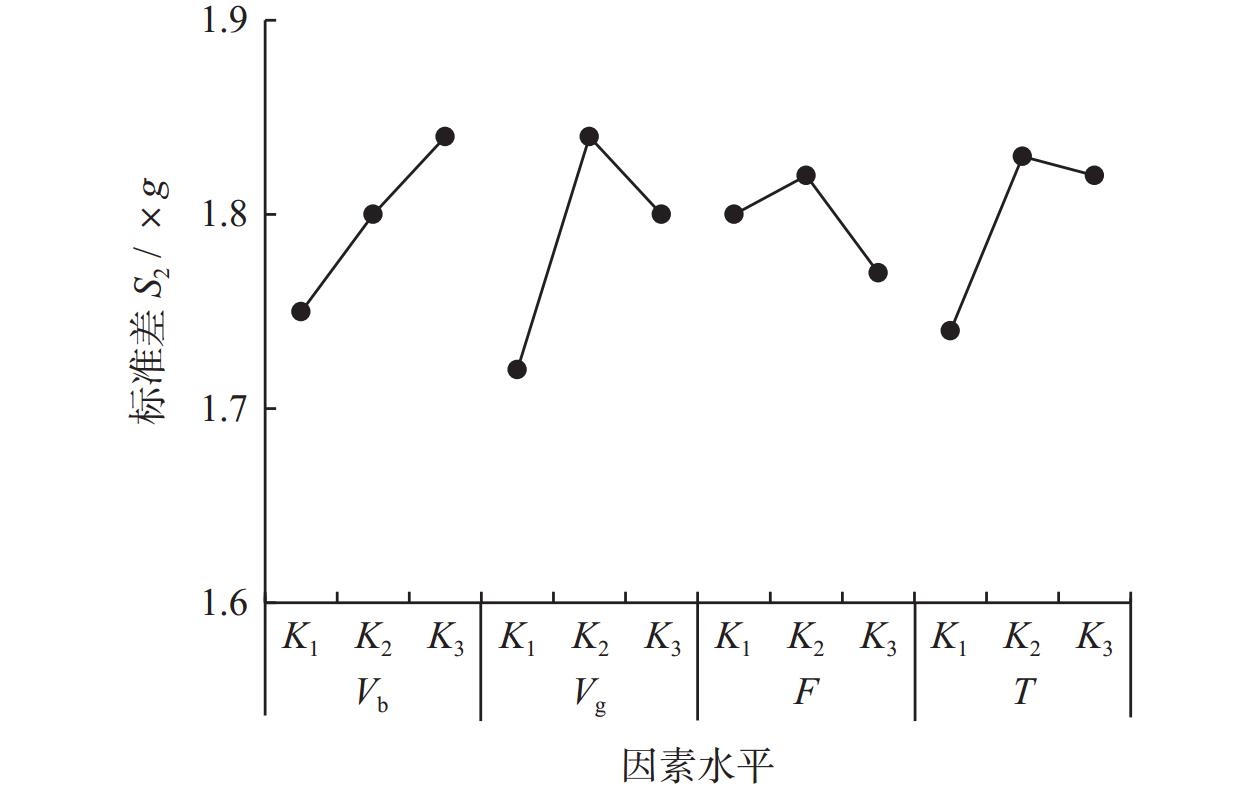

图 9 各因素在不同水平下的$ {S}_{2} $平均值

Figure 9. S₂average values of each factor at different levels

下载: 全尺寸图片幻灯片

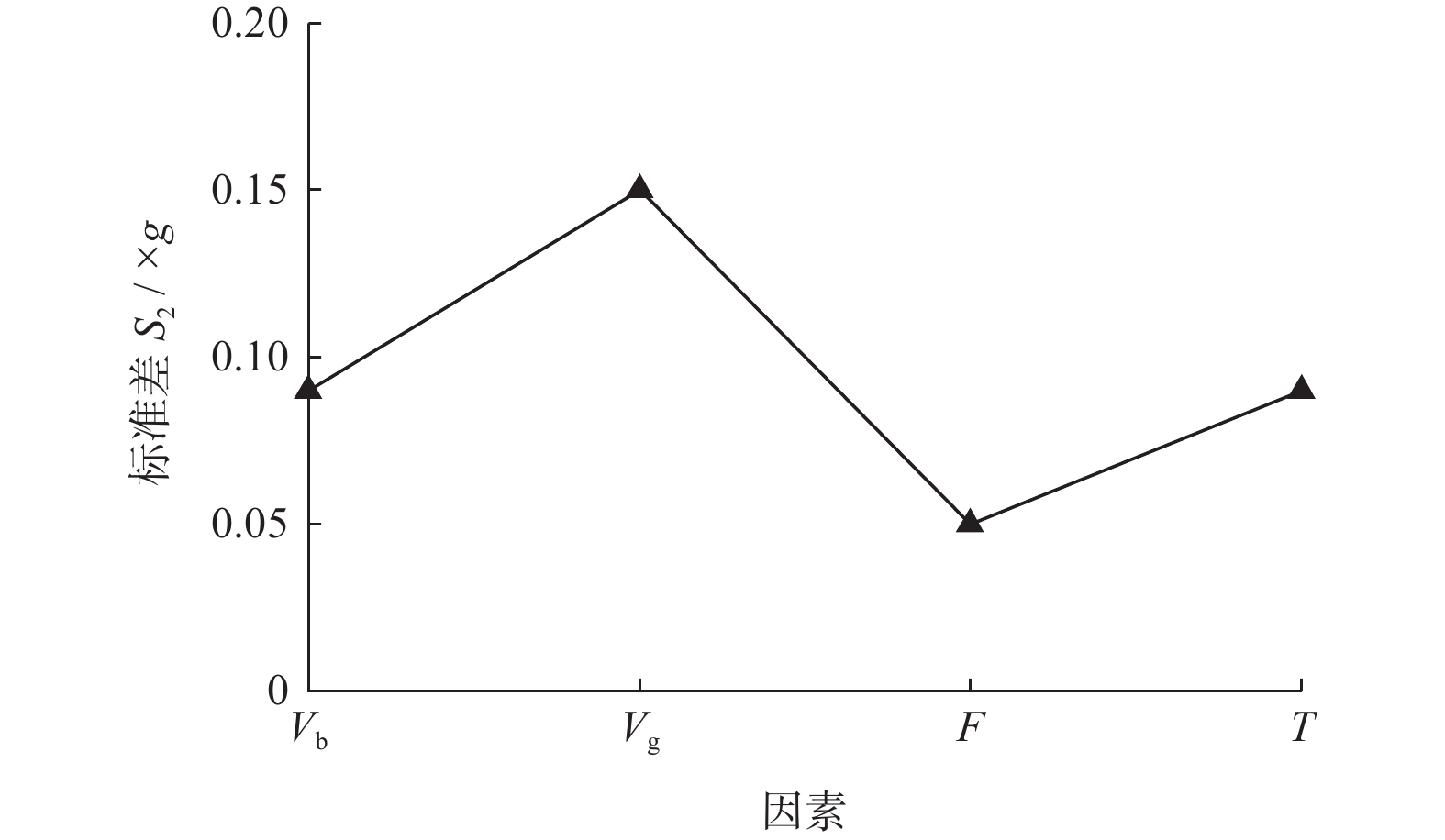

图 10 不同因素下$ {S}_{2} $的极差值

Figure 10. Range values of S₂ under different experimental factors

下载: 全尺寸图片幻灯片

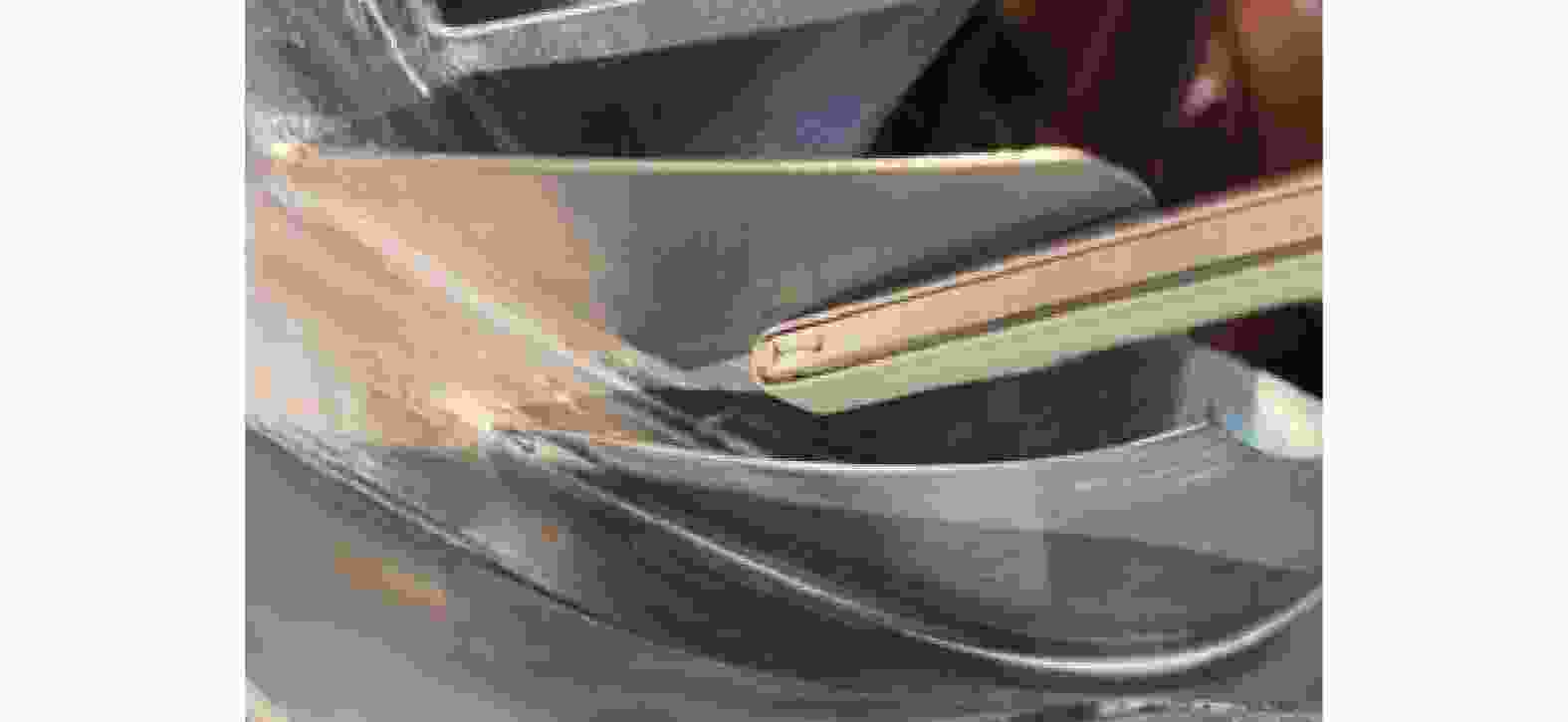

图 11 整体叶轮砂带磨抛表面

Figure 11. Overall impeller abrasive belt polishing surface

下载: 全尺寸图片幻灯片

表 1 正交试验设计表

Table 1. Orthogonal experimental design table

水平	因素
水平	砂带线速度 V_b / (m·s⁻¹)	进给速度 V_g / (m·s⁻¹)	接触力 F / N	砂带类型 T
1	8	6	1	1#
2	9	19	1.5	2#
3	10	32	2	3#

下载: 导出CSV

表 2 机器人砂带磨抛其他参数

Table 2. Other parameters of robot abrasive belt grinding and polishing

参数	数值
走刀长度 l / mm	100
砂带宽度 $ {w}_{\mathrm{s}} $ / mm	8
接触轮宽度 $ {w}_{\mathrm{j}} $ / mm	6
接触角 $ \phi $ / (°)	35

下载: 导出CSV

表 3 正交试验结果分析表

Table 3. Analysis table of orthogonal experiment results

编号	砂带线速度 V_b / (m·s⁻¹)	进给速度 V_g / (m·s⁻¹)	接触力 F / N	砂带类型T	$ {S}_{1} $/$ {S}_{2} $	降低百分比/%
1	8	6	1	1#	2.64/1.62	38.6
2	8	19	1.5	2#	2.84/1.81	36.3
3	8	32	2	3#	2.57/1.81	29.6
4	9	6	1.5	3#	3.04/1.70	44.1
5	9	19	2	1#	4.03/1.87	53.6
6	9	32	1	2#	3.12/1.84	41.0
7	10	6	2	2#	2.22/1.83	17.6
8	10	19	1	3#	3.54/1.94	45.2
9	10	32	1.5	1#	3.06/1.74	43.1
$ {K}_{1} $	1.75	1.72	1.80	1.74
$ {K}_{2} $	1.80	1.87	1.82	1.83
$ {K}_{3} $	1.84	1.80	1.77	1.82

下载: 导出CSV
